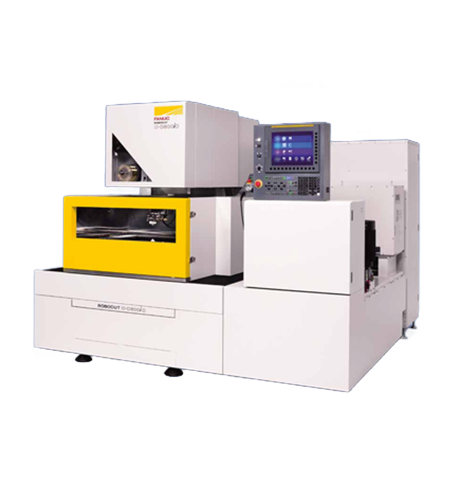

Introducing the ROBOCUT 𝛼-C600𝑖C – the can-do all-rounder. This versatile machine is your go-to solution for a wide range of machining tasks. Whether it is micro machining, intricate components, or larger projects, the 𝛼-C600𝑖C excels in them all. With its unmatched precision and adaptability, it is the perfect choice for industries like aerospace and automotive, where versatility is key. Discover the ultimate all-rounder for your machining needs with the ROBOCUT 𝛼-C600𝑖C.
▪High performance of cutting
▪Mechanical structure to provide high precision cutting
▪Discharge control iPulse3 to provide high precision cutting
▪Maximizing uptime
▪Automatic wire feeding system AWF3 to support unmanned operation
▪Level up performance of AWF
▪Twin servo wire feeding system
▪Ease of use
▪Intuitive operation to adjust EDM technologies
▪Various functions to support daily maintenance
▪Customize functions to support user needs
▪ROBOCUT ROBOT Package (Option)
▪Excellent maintenance services
▪Manufacturing tooling
▪Medical equipment
▪Intricate parts for the aerospace
▪Automotive industries by cutting various conductive materials
▪Maximum workpice dimensions without automatic door Z axis travel standard: 1050 X 820 X 300 mm
▪Maximum workpice dimensions without automatic door Z axis travel option: 1050 X 820 X 400 mm
▪Maximum workpice dimensions with automatic door Z axis travel standard:1050 X 775 X 300 mm
▪Maximum workpice dimensions without automatic door Z axis travel option: 1050 X 775 X 400 mm
▪Maximum mass of workpiece: 1000kg
▪XY axis table travel: 600 X 400 mm
▪Z axis travel standard: 310 mm
▪Z axis travel option: 410 mm
▪UV axis travel: ±100 mm X ±100mm
▪Maximum taper angle standard: ±30◦/ 150mm
▪Maximum taper angle option: ±45◦/ 70mm*1
▪Wire diameter standard: Ø0.10 to Ø0.30 mm
▪Wire diameter option: –
▪Maximum wire mass: 16 kg
▪Total mass (without electric liquid): Approx. 3250 kg
▪Controller: FANUC Series 31i-WB
