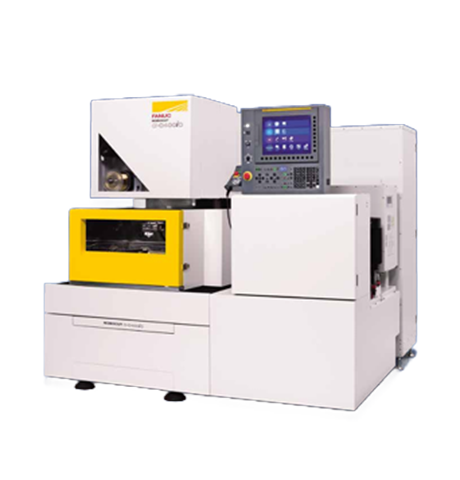

Introducing the ROBOCUT 𝛼-C400𝑖C model – the compact match for micro machining. This cutting-edge machine sets new standards in precision and versatility, making it the perfect choice for industries like aerospace, automotive, and beyond. With its exceptional accuracy and compact design, the ROBOCUT 𝛼-C400𝑖C redefines precision engineering, promising a bright future for your machining needs.
▪High performance of cutting
▪Mechanical structure to provide high precision cutting
▪Discharge control iPulse3 to provide high precision cutting
▪Maximizing uptime
▪Automatic wire feeding system AWF3 to support unmanned operation
▪Level up performance of AWF
▪Twin servo wire feeding system
▪Ease of use
▪Intuitive operation to adjust EDM technologies
▪Various functions to support daily maintenance
▪Customize functions to support user needs
▪ROBOCUT ROBOT Package (Option)
▪Excellent maintenance services
▪high-precision cutting
▪micro-machining of electrically conductive materials
▪Maximum workpice dimensions without automatic door Z axis travel standard: 730 X 630 X 250 mm
▪Maximum workpice dimensions without automatic door Z axis travel option: –
▪Maximum workpice dimensions with automatic door Z axis travel standard:730 X 585 X 250 mm
▪Maximum workpice dimensions without automatic door Z axis travel option: –
▪Maximum mass of workpiece: 500kg
▪XY axis table travel: 400 X 300 mm
▪Z axis travel standard: 255 mm
▪Z axis travel option: –
▪UV axis travel: ±60 mm X ±60mm
▪Maximum taper angle standard: ±30◦/ 80mm
▪Maximum taper angle option: ±45◦/ 40mm*1
▪Wire diameter standard: Ø0.10 to Ø0.30 mm
▪Wire diameter option: Ø0.05 to Ø0.30 mm
▪Maximum wire mass: 16 kg
▪Total mass (without electric liquid): Approx. 2400 kg
▪Controller: FANUC Series 31i-WB
