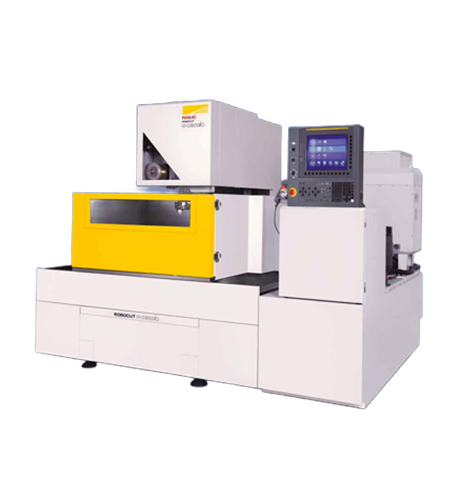

Big-bed versatility at its finest. This powerhouse of a machine redefines what’s possible in precision machining with its expansive work surface. Whether you’re handling large components, intricate details, or anything in between, the 𝛼-C800𝑖C delivers unrivaled performance. Experience the freedom to tackle diverse projects with ease, making it an ideal choice for industries requiring big-bed capabilities. Explore limitless possibilities with the ROBOCUT 𝛼-C800𝑖C.
▪High performance of cutting
▪Mechanical structure to provide high precision cutting
▪Discharge control iPulse3 to provide high precision cutting
▪Maximizing uptime
▪Automatic wire feeding system AWF3 to support unmanned operation
▪Level up performance of AWF
▪Twin servo wire feeding system
▪Ease of use
▪Intuitive operation to adjust EDM technologies
▪Various functions to support daily maintenance
▪Customize functions to support user needs
▪ROBOCUT ROBOT Package (Option)
▪Excellent maintenance services
▪Cut complex, large parts from conductive materials with high precision and speed. ▪Manufacturing large molds
▪Aerospace components
▪High-precision parts for industries like medical and electrical
▪Maximum workpiece dimensions without automatic door Z axis travel standard: –
▪Maximum workpiece dimensions without automatic door Z axis travel option: –
▪Maximum workpiece dimensions with automatic door Z axis travel standard:1250 X 975 X 300 mm
▪Maximum workpiece dimensions without automatic door Z axis travel option: 1250 X 975 X 500 mm
▪Maximum mass of workpiece: 3000kg
▪XY axis table travel: 800 X 600 mm
▪Z axis travel standard: 310 mm
▪Z axis travel option: 510 mm
▪UV axis travel: ±100 mm X ±100mm
▪Maximum taper angle standard: ±30◦/ 150mm
▪Maximum taper angle option: ±45◦/ 70mm*1
▪Wire diameter standard: Ø0.10 to Ø0.30 mm
▪Wire diameter option: –
▪Maximum wire mass: 16 kg
▪Total mass (without electric liquid): Approx. 5250 kg
▪Controller: FANUC Series 31i-WB
